Hungary

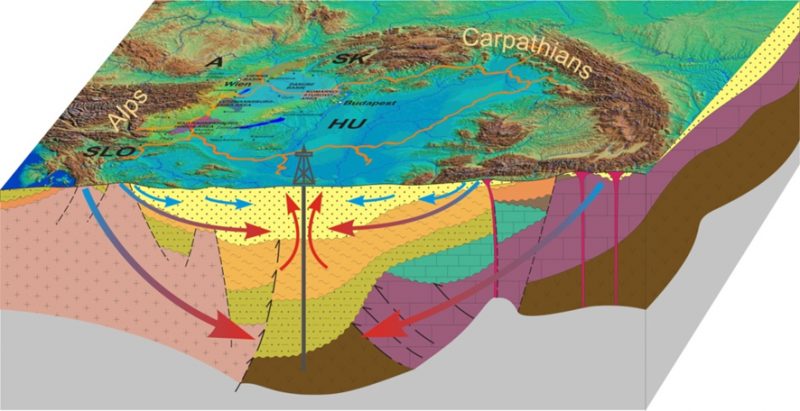

Geological setting, geothermal conditions

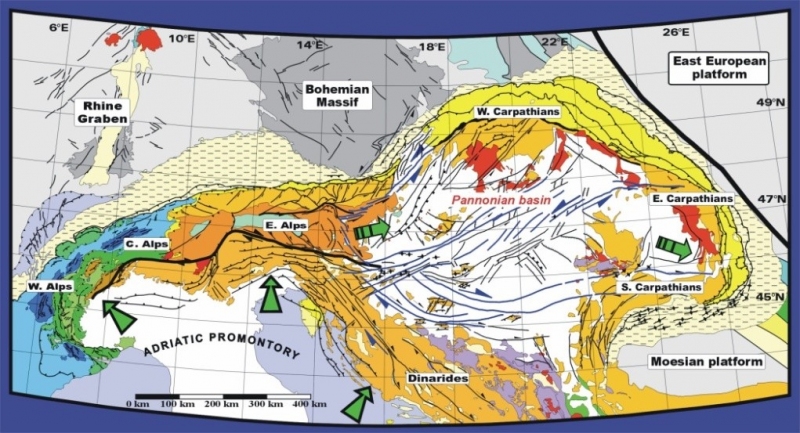

Basin formation: Early-Middle Miocene crustal extension

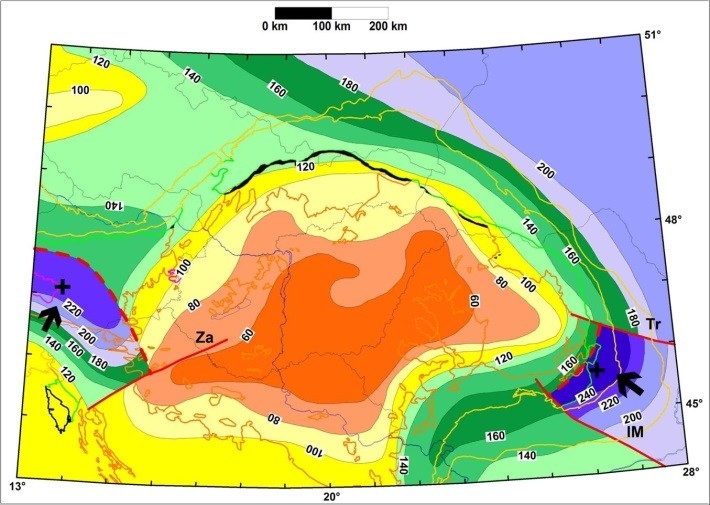

Streched (thinned lithosphere)

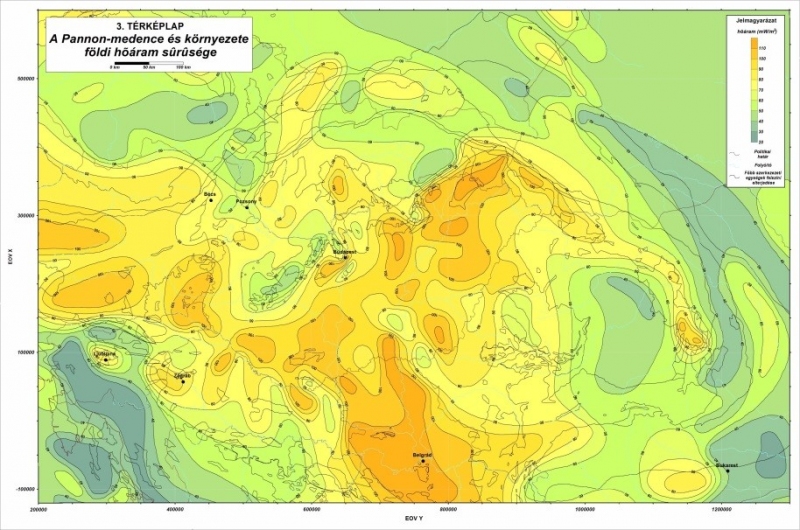

High heat flux (90-100 mW/m²) – continental average (60 mW/m²).

Geothermal gradient 45 °C/km (World average: 20-25 °C/km)

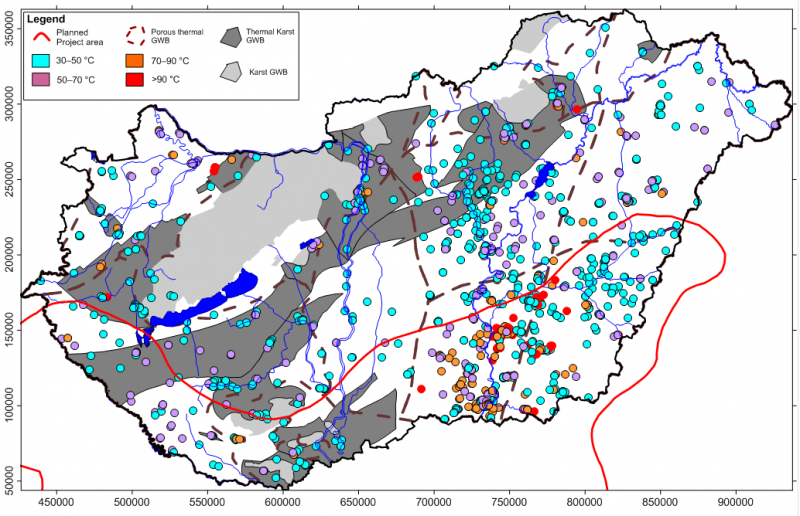

2 major geothermal reservoirs
- Karstified fractured-eathered zones (Palaeozoic-Mesozoic basement carbonates):

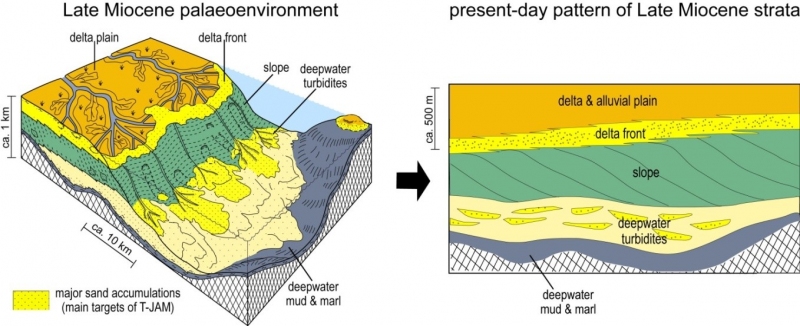

- Multilayered porous sediments (Upper Miocene-Pliocene “Pannonian” basin fill sequence) :
intergranular / porous reservoirs: best: delta (shelf) front sands

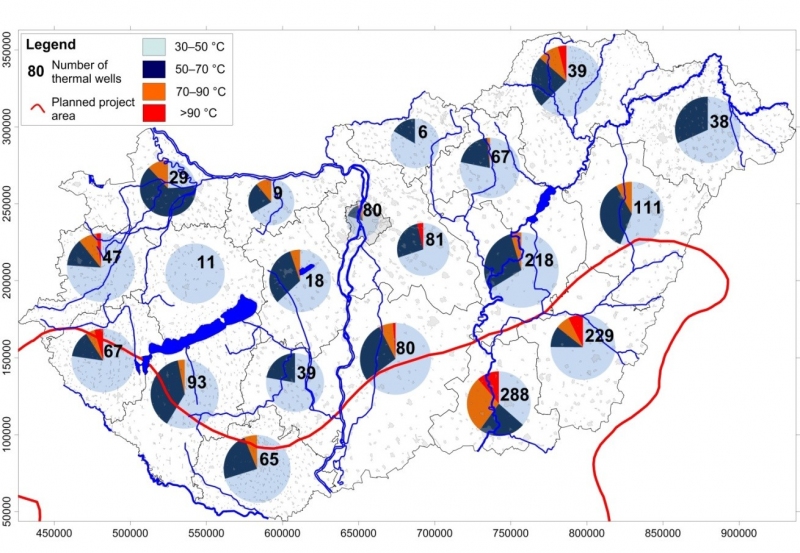

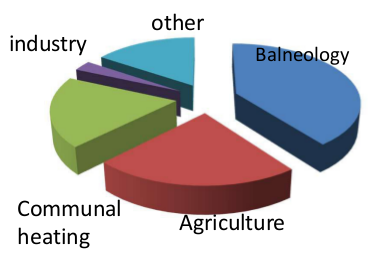

Current utilization

Red line: provisional contour of the DARLINGe area

Red line: provisional contour of the DARLINGe area

Agriculture: major sector for direct heat utilization (greenhouses, plastic tents)
Industrial purposes: few wells, typical outflow temperature is 40-50 °C
Balneological: ~255 wells, 40-50 °C outflow temperature
District heating: 21 towns in 2016 (thermal water heating cascade system)
